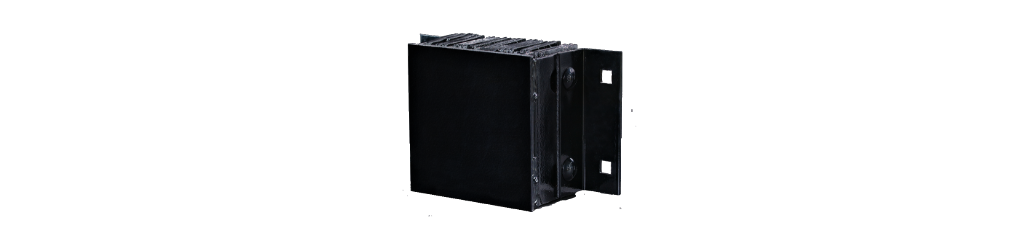

Loading docks are crucial hubs in industrial operations, ensuring seamless cargo handling and safety. One of the key components in dock safety is the loading dock bumper, which protects structures from damage caused by trucks and trailers. Properly measuring for loading dock bumpers is essential for ensuring they provide effective protection and durability. Here’s a comprehensive guide on how to measure and determine the appropriate projection for loading dock bumpers.
Measuring for Loading Dock Bumpers:
Accurate measurement starts with assessing the dock's configuration and traffic patterns. Don’t just assume that the bumpers currently on the building are correct. If there is visible damage to the building above the height of the loading dock door(s), the current bumpers aren’t correct and the facility is being damaged by incoming trailers.
1. Begin by measuring the height and width of the dock face where the bumpers will be installed.
2. Measure the height of the loading dock to approach – that dimension range is typically 46” – 52”.
3. Determine if your dock approach is level, is inclined, or has a decline. A standard loading dock bumper has a 4” projection which is considered acceptable distance between trailer and the building for a level or inclined approach. For a declined approach you will need to determine the Slope Ratio of the decline and then convert to degrees to order proper bumper to avoid facility damage.
a. Measure 50’ from the face of the building at the base of the loading dock and (typically) with a laser, determine how much rise there is from the approach at that distance to the base of the approach.
b. Divide the Rise by the Run to solve for Slope Ratio
c. Convert Slope Ratio to degrees by multiplying Slope Ratio X 180 and then dividing by Pi (3.141597).
For every 1 degree of slope, add 1” of bumper projection with the goal of keeping a minimum of 4” between the trailer and the building. These measurements provide the foundation for selecting bumpers that fit snugly and effectively safeguard against impacts.
Determining the Appropriate Projection:
The projection of loading dock bumpers refers to how far they extend from the dock face. This dimension is critical as it ensures the bumper absorbs the impact of trucks and prevents direct contact with the building structure. Industry standards often recommend a minimum projection of 4” that allows the bumper to protrude sufficiently to protect both the dock and the truck during loading and unloading operations. Factors such as the type of vehicles, frequency of use, and dock configuration influence the optimal projection length.
Summary:
Measuring for loading dock bumpers involves careful consideration of dock dimensions, traffic flow, and impact prevention needs. By accurately measuring and determining the appropriate projection, businesses can enhance safety, minimize structural damage, and optimize operational efficiency at loading docks. Investing in high-quality loading dock bumpers that meet these specifications not only ensures compliance with safety standards but also contributes to the smooth and reliable operation of industrial facilities. Consulting with SpecialtyDockParts.com can help tailor the projection to specific operational needs, ensuring long-term protection of the facility and loading dock infrastructure.
